1.概述
SC171系列是一款多網絡制式5G智能模組，基于高通SM6490平臺設計，采用8核高性能處理器（1*KryoGold plus 2.7GHz +3*KryoGold 2.4GHz+ 4*KryoSliver 1.95GHz），內置VDSP，集成高性能圖形引擎，可以流暢播放4K視頻。
SC171系列支持5G NSA 和SA 模式，向下兼容4G/3G網絡，支持5GNR sub-6Ghz，DL4x4 MIMO, UL 2x2 MIMO，支持2.4G+5GWLAN 無線通信，支持GPS（L1+L5)/Beidou/GLONASS無線定位技術。SC171搭載Android12操作系統，擁有MIPI/USB/ UART/ SPI/ I2C等多種擴展接口，是無線智能產品核心系統的優選方案。
SC171系列可廣泛應用于5G網絡下的行車記錄儀、智能POS收銀機、物流終端、VR、視頻監控、安防監控、車載設備、智能手持終端、無人機、智能機器人、智能家居等行業領域，是卓越的全球無線智能產品核心系統解決方案。
2.技術規格
基本特性
| Package | 636 LGA |
| Processor | Qualcomm QCM6490, 1XGoldP@2.7GHz+ 3XGold@2.4GHz+ 4XSilver@1.95GHz |
| GPU | Adreno? 635 GPU |
| Memory(Default) | 4GB LPDDR4X+64GB UFS |
| Dimension (mm) | 42.5*56.5*2.85 |
| NR | n41/78/79(SA&NSA), n1/3/5/8/28(only SA) |
| LTE FDD | B1/3/5/8 |
| LTE TDD | B34/38/39/40/41 |
| WCDMA | B1/8 |
| WIFI | 802.11 a/b/g/n/ac/ax, (2X2 MIMO) 2.4G/5G/6G |
| BT | 5.2 BR/EDR/BLE |
| GNSS | GPS(L1+L5)/GLONASS/Beidou |
| OS | Android S |
| Power Supply | DC 3.5 ～ 4.2V |
| Weight | About13.5g |
| Operating Temp | -30°C ~ +75°C |
| Storage Temp | -40°C ~ +85°C |
傳輸速率
| 5G | 5G SA 2T4R 256Q: Max 2.3Gbps(DL)/Max 900Mbps(UL) 5G NSA 1T4R 256Q: Max 2.3Gbps(DL)/Max 550Mbps(UL) |
| LTE FDD (Mbps) | Max 900(DL)/ 100(UL) |
| LTE TDD (Mbps) | Max 900(DL)/ 100(UL) |
| UMTS/HSPA/HSPA+ (Mbps) | HSUPA Max 5.7(UL) HSPA+ Max 42(DL) |
| TD-SCDMA (Mbps) | NA |
| CDMA EVDO (Mbps) | NA |
| EDGE/GPRS(Kbps) | NA |
| WIFI (Mbps) | AX3000 |
視頻處理
| Video Encoding | 4K@30fps 8?bit: H.264/H.265 |
| Video Decoding | 4K@60fps 10?bit: H.264/H.265, VP9 |
接口
| UART/SPI(Mbps) | 6 x UART up to 3 |
| I2C(Kbps) | 16 x I2C up to 3.4Mbps |
| USB | 1 x USB2.0+1x USB3.1, Support OTG, Support DP over Type-C |
| SDIO | 1 x SDIO |
| CAM | MIPI_CSIx4，ISPx5 Up to 36M |
| GPIO | 33 GPIOs |
| Display | 4-lane MIPI_DSI up to FHD+(2520 x 1080) |
| Speaker | 1W on 8? load in Class-D mode |
| Receiver | 1 x Mono, AB |
| Mic | 2 x analog microphones |
| Handset | Stereo CLASS AB |
| USIM | 2 x SIM card,support dual-SIM dual-standby |
| Keys | Power on/off /Volume up /Volume down /Reset |
| Advantages | 1、Android S 2、DSI support up to 2520 × 1080@144fps + DP support up to 4K@60 Hz 3、High computation capability，support 4K@60 Hz video recording and playing 4、Support dual USB and WiFi 6 5、Support maximum five-channel camera |
| Applications | PDA,ADAS,VR,AR,Smart healthcare,Automotive |
認證
| Regulation | RoHS/CCC/SRRC/NAL |
| Operator | NA |
| Industry | NA |
* = 計劃/開發中

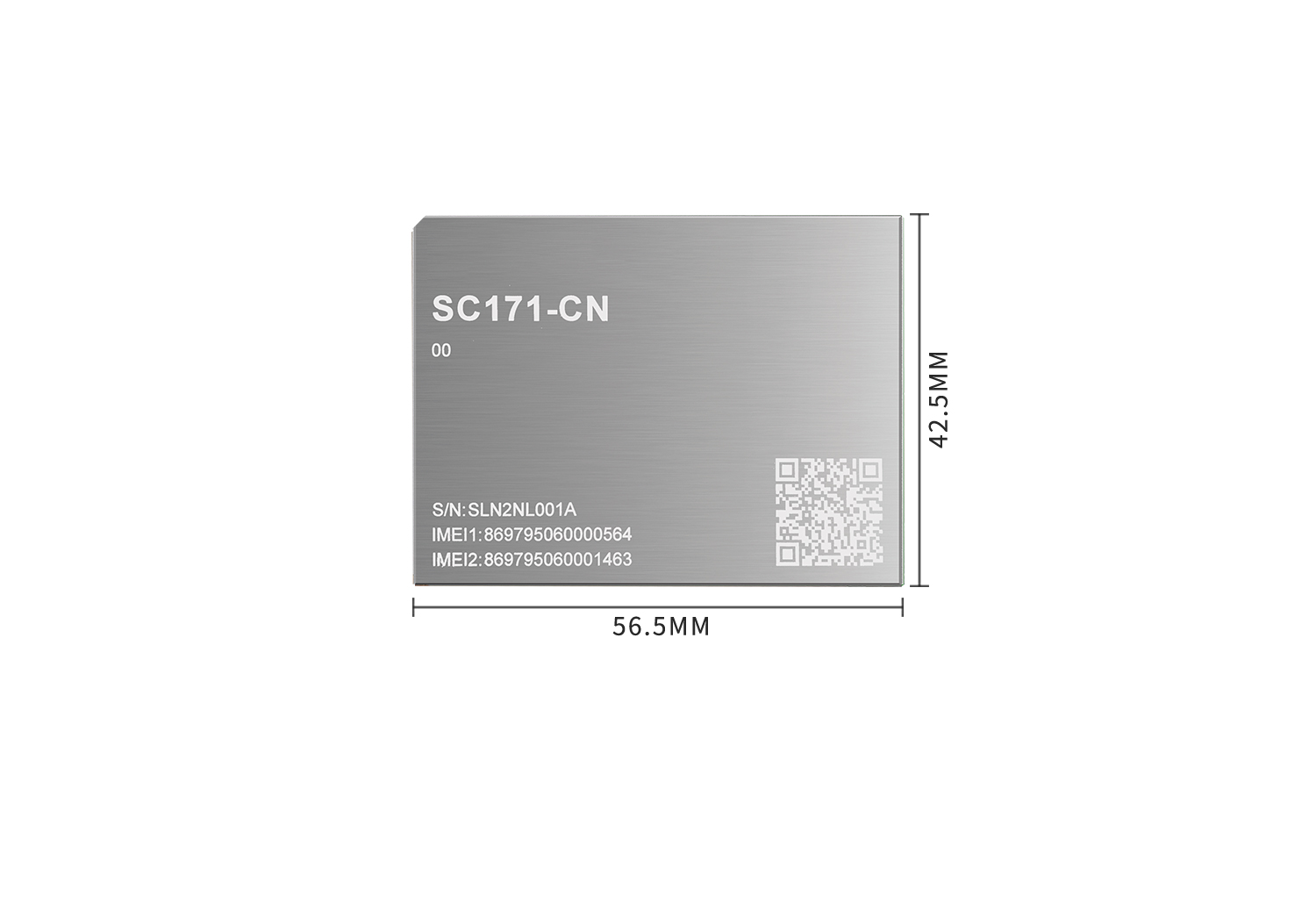

3.產品圖片
