1.概述
L716-CN 系列是一款LCC+LGA封裝的LTE無線通信模塊，支持LTETDD/LTE FDD/WCDMA/TD-SCDMA/GSM五種制式，支持FDDLTE和TDD LTE混合組網網絡，最高可達Cat4150Mbps下行和50Mbps上行速率。支持HTTP/HTTPS、ECM/RNDIS、PPP、FOTA、Audio等M2M行業所需功能特性，支持拓展工作溫度-40~85℃，可廣泛用于公網對講、家庭網關、工業路由、電力、安防監控等對低時延要求比較高的M2M行業。
2.技術規格
基本特性
| Package | LCC+LGA |
| Dimension (mm) | 32.0*29.0*2.4 |
| LTE FDD | B1/3/5/8 |
| LTE TDD | B34/38/39/40/41 |
| WCDMA | B1/5/8 |
| TD-SCDMA | NA |
| EVDO | NA |
| CDMA2000 1X | NA |
| GSM/GPRS/EDGE | 900/1800MHz |
| Power Supply | 3.3V - 4.4V (Typical 3.8V) |
| Operating Temp | -30°C ~ +75°C |
| Extended Temp | -40°C - +85°C |
傳輸速率
| LTE FDD (Mbps) | 150 (DL)/ 50 (UL) |
| LTE TDD (Mbps) | 130 (DL)/ 30.5 (UL) |
| DC-HSPA+(Mbps) | 42(DL)/ 5.76(UL) |
| HSPA/HSPA+(Mbps) | NA |
| WCDMA(kbps) | 384 (DL)/ 384 (UL) |
| TD-SCDMA (Mbps) | NA |
| EVDO(Mbps) | NA |
| CDMA2000 1X(Kbps) | NA |
| EDGE(Kbps) | 236.8(DL)/ 236.8(UL) |
| GPRS(Kbps) | 85.6(DL)/ 85.6(UL) |
功能
| eSIM | Optional |
| Remote SIM | NA |
| eCALL | NA |
| OpenCPU | Optional |
| MUX | ● |
| Jamming Detection | NA |
| USSD | ● |
| STK | NA |
| LBS | NA |
| FOTA | DFOTA |
| OS Drivers | Linux/Windows/Android |
| GNSS | NA |
| MMS | NA |
| CSD | NA |
| TTS | Optional |
| SMS | ● |
| Analog Audio | NA |
| Digital Audio | ● |
| Voice Code | ● |
| Audio Play/Record | Optional |
| Protocols | TCP(S)/UDP/HTTP(S)/FTP(S)/IPv4/IPv6/SSL*/TLS/MQTT*/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN |
接口
| SIM | x1, 1.8V/ 3.0V |
| USB | x1,USB2.0 |
| PCIe | NA |
| UART | x2 |
| SPI | ● |
| ADC | x2 |
| GPIO | ● |
| SDIO | ● |
| PCM | ● |
| SGMII | RMII |
認證
| Regulation | RoHS/SRRC/CCC/NAL |
| Operator | CMCC*/CTCC* |
| Industry | NA |
* = 計劃中 / 開發中

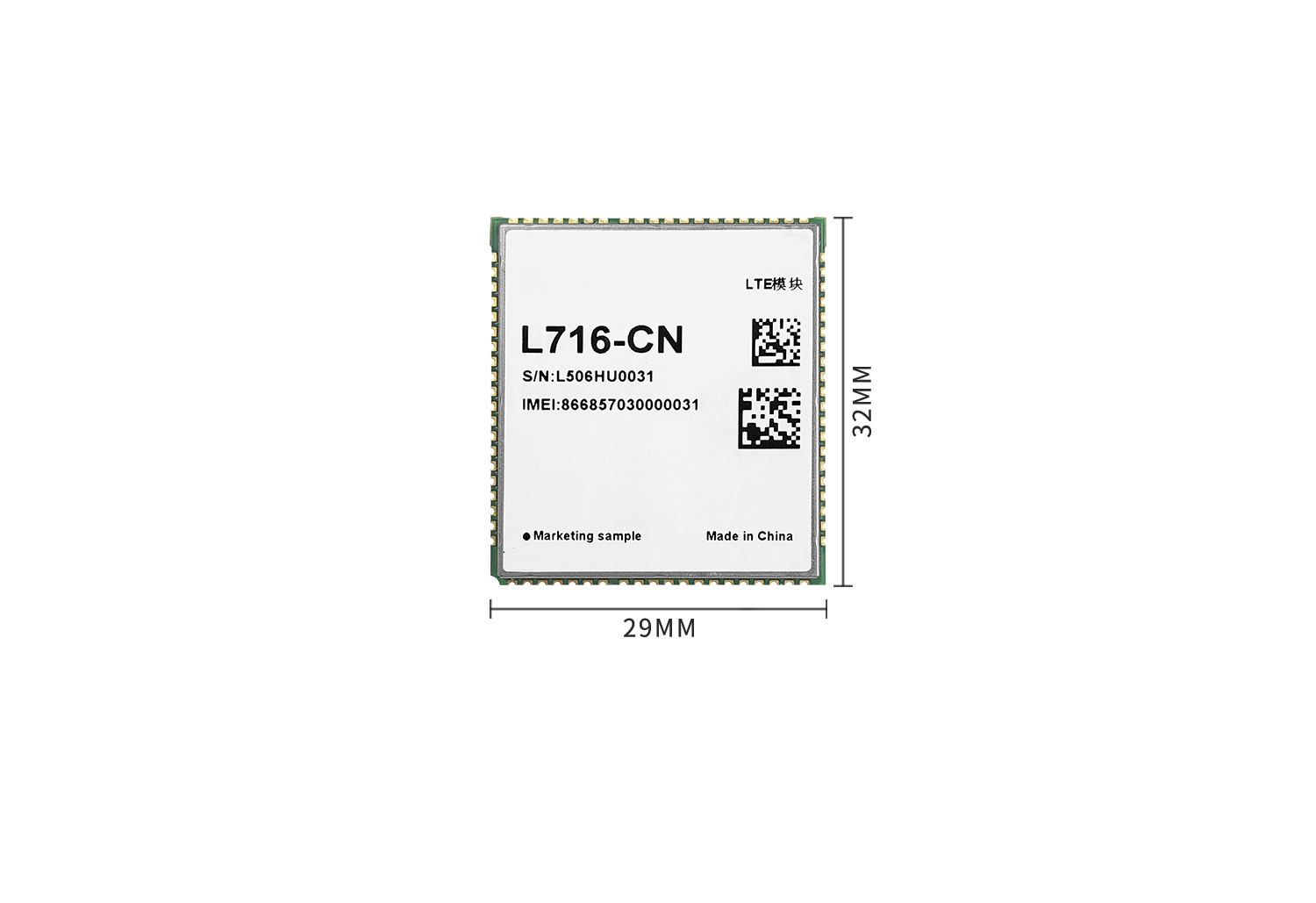

3.產品圖片
