技術規格
基本特性
| Package | LCC+LGA |
| Dimension (mm) | 17.7x15.8x2.4 |
| LTE FDD | B1/3/5/8 |
| LTE TDD | B34/38/39/40/41 |
| WCDMA | NA |
| TD-SCDMA | NA |
| EVDO | NA |
| CDMA2000 1X | NA |
| GSM/GPRS/EDGE | NA |
| Power Supply | 3.4V ~ 4.3V (Typical 3.8V) |
| Operating Temp | -30°C ~ +75°C |
傳輸速率
| LTE FDD (Mbps) | 10.3(DL)/5.1(UL) |
| LTE TDD (Mbps) | 9.1(DL)/3.1 (UL) |
| DC-HSPA+(Mbps) | NA |
| HSPA/HSPA+(Mbps) | NA |
| UMTS(Kbps) | NA |
| TD-SCDMA (Mbps) | NA |
| EVDO(Mbps) | NA |
| CDMA2000 1X(Kbps) | NA |
| EDGE(Kbps) | NA |
| GPRS(Kbps) | NA |
功能特性
| WiFi scan | ● |
| BlueTooth | NA |
| SIM | ● |
| eSIM | NA |
| eCALL | NA |
| OpenCPU | Optional |
| MUX | ● |
| 雙卡雙待 | NA |
| Jamming Detection | ● |
| USSD | NA |
| STK | ● |
| LBS | ● |
| FOTA | DFOTA |
| OS Drivers | Linux/Windows/Android |
| GNSS | Optional |
| MMS | NA |
| CSD | NA |
| TTS | NA |
| SMS | ● |
| Audio | NA |
| Voice Code | NA |
| Audio Play/Record | NA |
| Protocols | TCP/UDP/HTTP(S)/FTP(S)/HeartBeat/MQTT/SSL/TLS/ECLOUD/IPV6 |
接口
| SIM | x 2, 1.8V/3.0V |
| USB | x 1, USB2.0 |
| PCIe | NA |
| UART | x2 |
| SPI | ● |
| ADC | x2 |
| GPIO | ● |
認證
| Regulation | RoHS*/CCC*/NAL*/SRRC* |
| Operator | CTCC*/CMCC* |
| Industry | NA |
* = 計劃/開發中

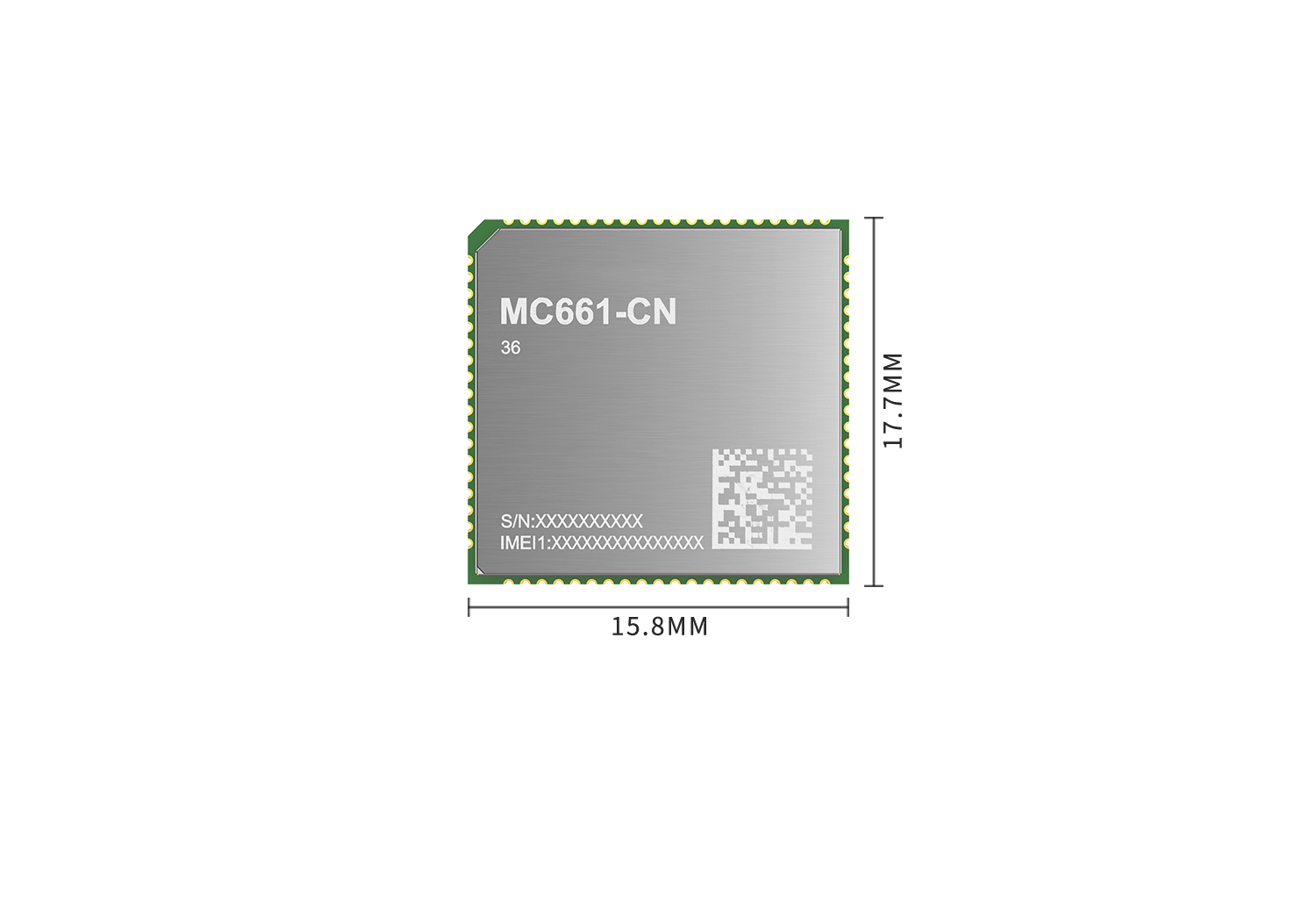

產品圖片
